USB-C™ Triple Display Docking Station with 100W PD Adapter

Model: JCD543P

This triple display docking station turns your Mac® or Windows® laptop into a full workstation with a DisplayPort™ output, two HDMI™ outputs, and a VGA output, with resolution support up to 4K (3840 x 2160) on two displays and 1080p on the other one.

Contact Sales

Features & Specifications

Features
  • TRIPLE DISPLAY FLEXIBILITY & ADAPTABILITY
    • Create a triple-monitor setup with 4K HDMI™, 1080p VGA, and 4K DisplayPort™ outputs and together with your laptop display, you can have a maximum of 4 displays. Available display combinations:
      • HDMI™ + VGA + DisplayPort™
      • HDMI™ + VGA + HDMI™
  • USB-C™ 100W POWER DELIVERY
    • With the attached USB-C™ cable, the dock will power and charge power-hungry laptops, with up to 100W Power Delivery and power your connected peripherals when it’s used with a USB-C™ power adapter.
  • MULTIPLE CONNECTIONS
    • To support all of your USB™ peripherals, the dock provides a total of four USB™ 3.0 ports (1 USB-C™ and 3 USB™ Type-A ports), a Gigabit Ethernet port, SD™/microSD™ card slots and a combo audio jack.
  • BC 1.2 FAST CHARGING
    • One of the USB™ 3.0 Type-A ports is a fast-charge port, so you can charge your mobile devices faster than you can from a standard USB™ port.
  • CUTTING-EDGE DESIGN
    • Advanced heat-eliminating design is the perfect solution to expand your laptop into a full-sized workstation without the worry of overheating and with the double-sided cable storage compartment, you can place the cable any way you like.
Hardware & Performance
  • Ports
    • 2 – USB™ 3.0 Type-A
    • 1 – USB™ 3.0 Type-A fast charge
    • 1 – USB-C™ 3.1 Gen 1
    • 1 – USB-C™ Power Delivery 3.0
    • 2 – 4K HDMI™
    • 1 – DisplayPort™
    • 1 – VGA
    • 1 – SD™ & microSD™ memory card reader/writer
    • 1 – RJ45 Gigabit Ethernet
    • 1 – 3.5 mm combo audio jack
  • Performance
    • Audio Channel – 2.1 via HDMI™/DisplayPort™/3.5 mm Aux
    • Compatible Networks – 10/100/1000 Mbps
    • Displays Supported – 3 (HDMI™, VGA and DisplayPort™ or HDMI™)
    • Max Data Transfer Rate – 5 Gbps
    • Max Display Refresh Rate
      • HDMI™/DisplayPort™ 4K: 30 Hz
      • HDMI™/DisplayPort™ 1080p: 60 Hz
      • VGA: 60 Hz
    • Max Display Resolution
      • HDMI™/DisplayPort™: 3840 x 2160
      • VGA: 1920 x 1080
Physical Specs & Power
  • Physical Specifications
    • Cable Length – 1.48 ft (45 cm)
    • Color – Silver/Black
    • Enclosure Type – Aluminum
    • Operating Humidity – < 85% non-condensing
    • Operating Temperature – 32 to 118°F (0 to 48°C)
    • Product Depth – 13.78 in. (350 mm)
    • Product Height – 0.92 in. (23.37 mm)
    • Product Weight – 10.58 oz (300g)
    • Product Width – 3.25 in. (82.5 mm)
    • Storage Humidity – < 85% non-condensing
    • Storage Temperature – 14 to 149°F (-10 to 65°C)
  • Power
    • Input Current – 2.5A
    • Input Voltage – 110V-240V
    • Output Current – 6.75A
    • Output Voltage – 20V
    • Power Consumption – 1.2A
    • Power Delivery – 96W
Package Contents
  • 1 – JCD543P USB-C™ Triple Display Docking Station
  • 1 – JUP2290 100W USB-C™ Super Charger
  • 1 – Quick Installation Guide

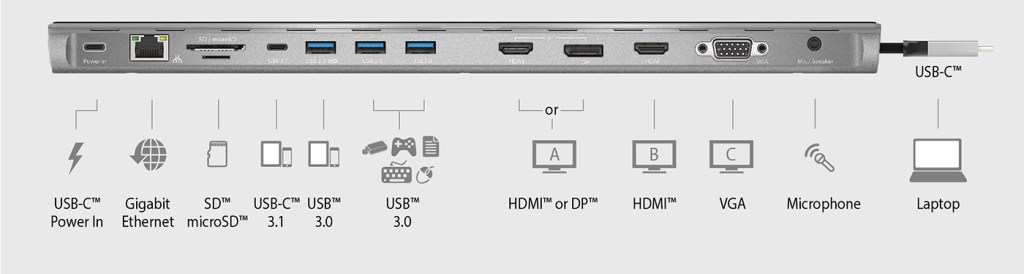

13-in-1 Functions

Offers extensive device compatibility

Simultaneous DisplayPort™, HDMI™ and VGA Output

Supports Mirror and Extended modes on both Mac® & Windows®. The easiest way to add a second or third display.

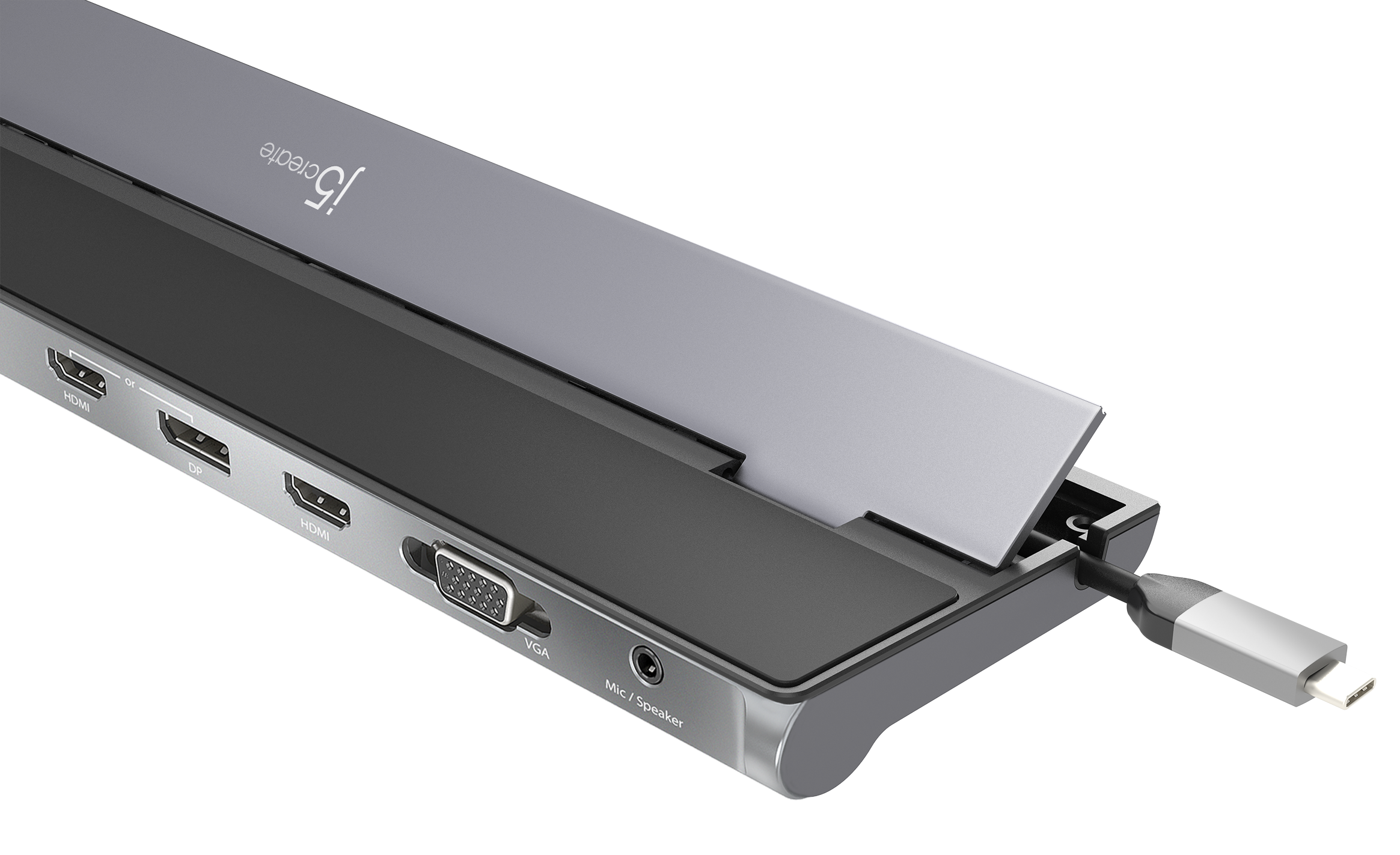

HDMI™/DisplayPort™/VGA Output Port

Supports 3 Video Interfaces

USB-C™ Power Delivery 100W Pass-Through

13 ports in one sleek design for all your needs
