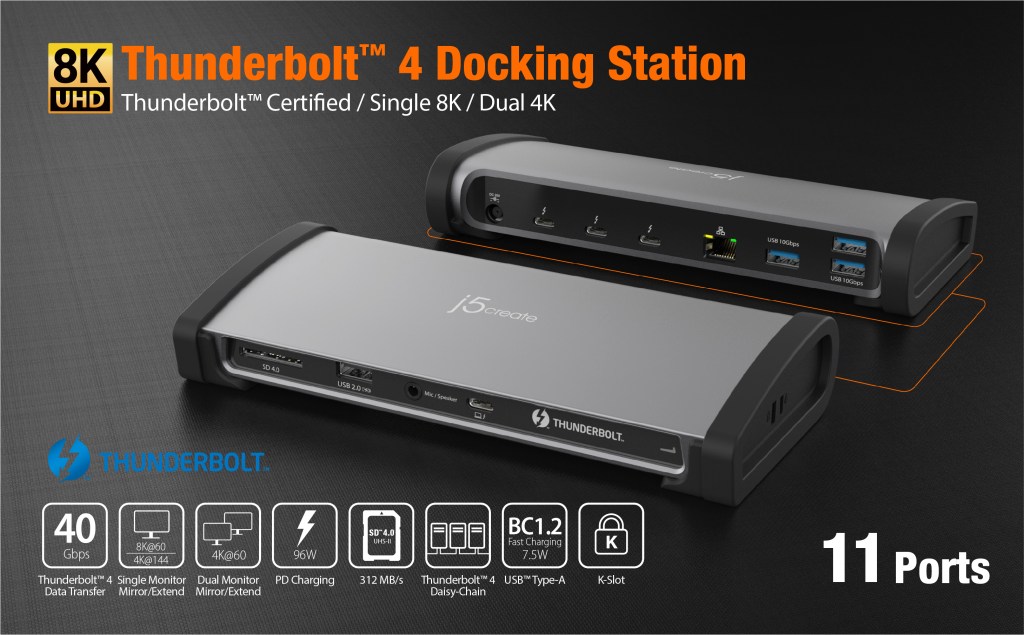

8K Thunderbolt™ 4 Docking Station

Model: JTD562

This Thunderbolt™ 4 Docking Station turns your Mac® or Windows® laptop into a full workstation with three Thunderbolt™ 4 outputs. Supports resolution up to dual display 4K or one display at 8K.

Contact Sales

Features & Specifications

Features
  • Providing the ultimate connectivity for Thunderbolt™ 4 laptops
  • Intel® Thunderbolt™ 4 certified for reliability and compatibility
  • Capable of ultra-high data transfer speeds
  • Supports dual 4K@60Hz displays or one high-resolution 8K display with crystal clear image quality
  • Supports Thunderbolt™ daisy chain feature to connect more Thunderbolt™ devices
  • Perfectly made for MacBook Pro® (2021 and later) and Thunderbolt™4 laptops
  • 3 x Thunderbolt™ 4 USB-C® 40Gbps
  • Power adapter 135W AC adapter with up to 96W PD charge
  • Backwards compatible with Thunderbolt™ 3

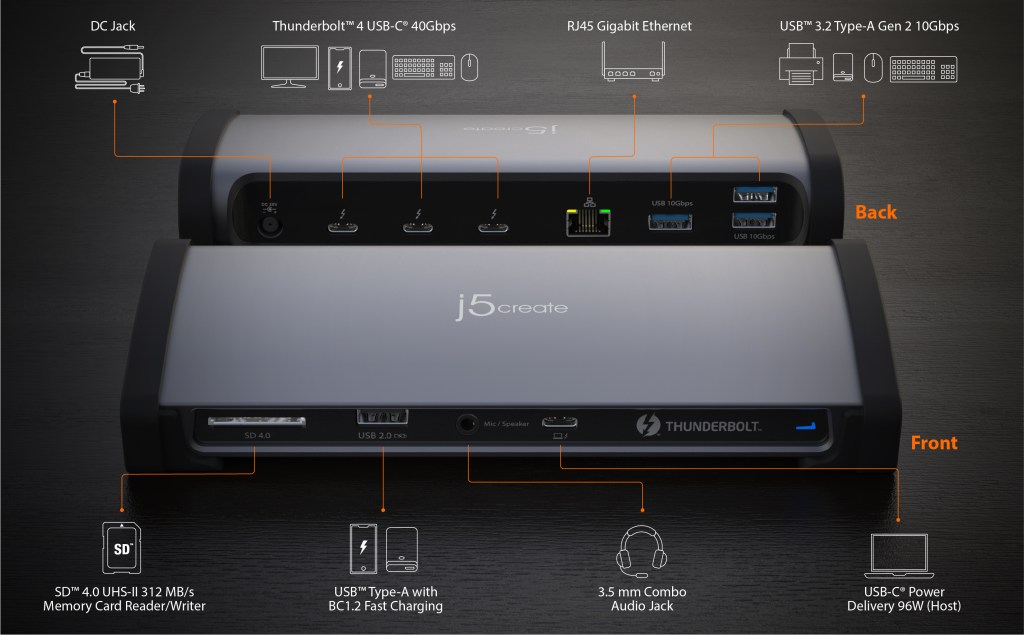

Hardware & Performance
  • Ports
    • 1 – USB-C® Power Delivery 96W (Host)
    • 3 – Thunderbolt™ 4 USB-C® 40Gbps
    • 3 – USB™ 3.2 Type-A Gen 2 10Gbps
    • 1 – USB™ 2.0 Type-A with BC1.2 fast charging
    • 1 – SD™ 4.0 UHS-II 312 MB/s memory card
    • reader/writer
    • 1 – 3.5 mm combo audio jack
    • 1 – RJ45 Gigabit Ethernet
  • Performance
    • Audio Channel – 3 – Thunderbolt™ 4 / 3.5 combo audio jack
    • Compatible Networks – 10/100/1000 Base-T, auto-negotiating
    • Displays Supported – 2
    • Max Data Transfer Rate – 40Gbps
    • Max Display Refresh Rate – 60 Hz via Thunderbolt™ 4
    • Max Display Resolution:
      • Thunderbolt™ Mode
        • 2 – 4K @ 60 Hz
        • 1 – 4K @ 120 Hz (Via DP™)
        • 1 – 4K @ 144 Hz (with DSC)
        • 1 – 8K @ 30 Hz
        • 1 – 8K @ 60 Hz (with DSC)
      • MFDP Mode (Base on HBR3 Host)
        • 1 – 4K @ 60 Hz
Physical Specs & Power
  • Physical Specifications
    • Cable Length – 2.3 ft. / 70 cm
    • Color – Black / Space Grey
    • Enclosure Type – Aluminum
    • Operating Humidity – < 85% non-condensing
    • Operating Temperature – 32 to 118°F (0 to 48°C)
    • Product Depth – 1.21in./ 30.85 mm
    • Product Height – 7.64 in./194 mm
    • Product Weight – 14.5 oz /411g
    • Product Width – 3.32 in./ 84.39 mm
    • Storage Humidity – < 85% non-condensing
    • Storage Temperature – 14 to 149°F (-10 to 65°C)
  • Power
    • Input Current – 2.5A
    • Input Voltage – 110V-240V
    • Output Current – 6.75A
    • Output Voltage – 20V
    • Power Consumption – 1.2A
    • Power Delivery – 96W
Package Contents
  • 1 – JTD562 Thunderbolt™ 4 Docking Station
  • 1 – 135W AC adapter with up to 96W PD charge
  • 1 – Thunderbolt™ 4 to Thunderbolt™ 4 Cable (2.3 ft / 70 cm)
  • 2 – USB-C® to 4K DisplayPort™ Cable (JCA141)
  • 1 – Quick Installation Guide (QIG)

Blazing fast with Thunderbolt™ 4

Achieve 4K & 8K while maintaining a strong connection

11 Total Ports

A wide array of functions
